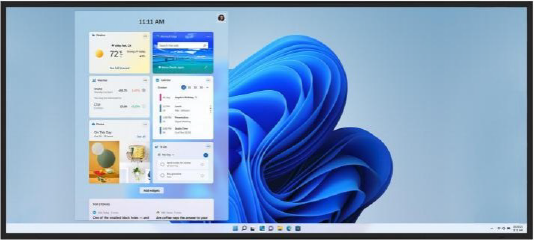

55” 8K Broadcast Flat Screen Display Specification
Infrastructure
It is based on the GK6780 platform, Android 10 solution, 8-core A73*8, Mali-G52*12 GPU, It is suitable for TV station (video engineering work station), education, conference electronic whiteboard, digital signage application and other commercial display fields.
7860 x 2160 resolution. Show the peer-to-peer experience in full.
The screen features a clean, crisp display with full-layer laminated technology. Enhanced contrast and clarity deliver more realistic interactions and eye-catching visuals. The device offers comprehensive audio-visual input/output interfacesincluding full-function RS232, HDMI OUT*2, HDMI IN*2, USB3.0*2,USB2.0*1,SPDIF*1, RJ45*1 along with built-in communication ports for USB/I2C UART.
Processor performance
- Powerful computing capabilities, CPU: 8*A73, GPU: 12*G52;
- Supports HDMI 2.0 and HDMI 2.1 input, supports HDMI 8K120Hz IN and OUT; Supports dual-channel HDMI PIP display;
- Powerful video encoding and decoding capabilities：
- Supports the highest 8KP120@10bit ultra-high- definition decoding and display, and also supports AVS3/AVS2/AVS+, H.265, H.264, AV1, VP6/8/9, MPEG2, MPEG4, VC1 decoding, and the highest 4KP60 H.265/H.264.
- Supports 5K2K@120Hz screen, can be upgraded to 5K UI;
- Rich peripheral interfaces: USB3.0/PCIE/SATA, supports gigabit network interface;
- NPU has 4T computing power, integrates gesture recognition and face recognition algorithms;
Audio performance
2x10 or 2x20W built-in speakers (optional), Supports Dolby and DTS audio processing.
Display maramteres
|
screen size
|
55" |
|
screen type
|
LCD |
|
screen proportions
|
32:9 |
| refresh rate | 120 Hz |
| display area | 1209,5 (H) x 3402 (V) mm |
| resolution ratio | 7680 (H) x 2160 (V) |
| pixel spacing | 0,0525 (H) x 0,1575 (V) |
| overall brightness | 300 nits |
| response time | 15 ms |
| contrast ratio | 1200:1 |
| colour gamut | 72% |
| visual perspective | 178 |
| life lenght | 30 000 Hrs |
Android system specification
|
Android system version
|
Android10.0
|
|
Master chip
|
GK6780V300
|
|
CPU
|
Cortex A73*8
|
|
GPU
|
Mali-G52*12
|
|
DDR
|
LPDDR4X 6G
|
|
EMMC
|
64G
|
|
Operating frequency
|
2.4GHz
|
|
Wifi configure
|
The board supports WiFi6 (external) and built-in Bluetooth 5.2 version
|
|
audio frequency
|
Standard 8Ω (Maximum: 2* 15W)
|
|
OSD language
|
English / Chinese, etc
|
System port parameters
| SIM | 1 |
| HDMI IN | 2 |
| RS232 | 1 |
| SPDIF | 1 |
| HDMI OUT | 2 |
| HDMI IN #2 | 1 |
| USB 2.0 | 1 |
| USB 3.0 | 2 |
| RJ45 IN | 1 |
Structural specification parameters
|
net weight
|
93.58KG
|
|
rough weight
|
123.45KG (including wall accessories)
|
|
External dimensions of the naked machine (W x D x H)
|
2506*1092*97mm (length* width*height)
|
|
Size of packaging box (W x D x H)
|
2667*230*1282mm (length * width * height)
|
|

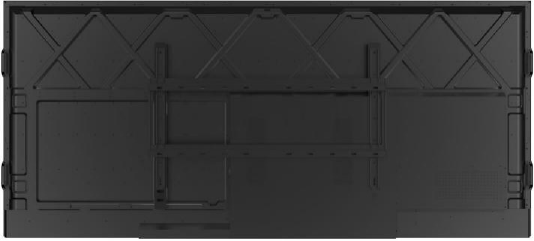

VESA/wall mount position
|
1000×600mm (support horizontal and vertical brackets)
|
| Bolt specifiction |
M8×25mm
|
|
sheathing material
|
Hardware back cover + aluminum alloy brushed front frame
|
|
Shell paint
|
It's all black
|
